L/P EMITTER ACCESS BOX 6 X 9

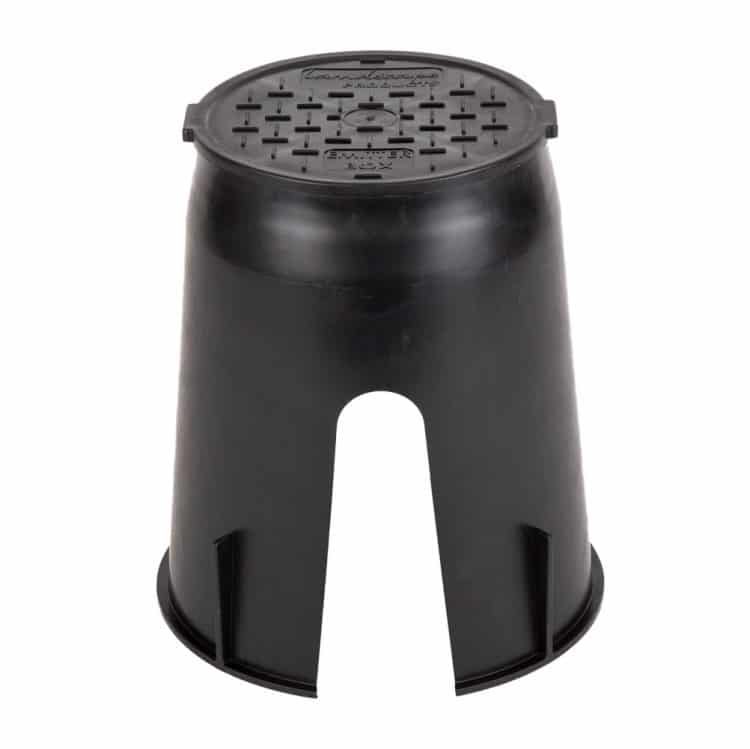

6-inch Round Emitter Box with Black Lid

PRODUCT NUMBER: 12001690

The compact design of the Landscape Products 6 x 9-inch round emitter box provides maximum protection and easy access for most sizes of multi-outlet emitter devices. The deep openings allow for lateral supply lines and multiple drip micro tubes leading to the each plant. Also suitable for air vacuum relief (12051240) installation in sub-surface drip irrigation systems.

  • 6 x 9-inch round emitter box
  • Black box with black lid included
  • Overlapping covers prevent dirt and grass from settling between body and cover
  • Replacement lid (12001695)





Print Friendly, PDF & Email

  • Material: High density polyethylene
  • Body and lid color: Black
  • Body dimensions
    • Overall dimensions 6 inches x 9 inches
    • Top diameter: 6 inches
    • Bottom diameter: 7 3/4 inches
    • Height: 9 inches
    • Openings: Two pipe/tubing slots; 2 1/2-inches wide x 5 1/4-inches high
  • Lid dimensions
    • Diameter: 6 inches
    • Two exterior lift tabs
    • Four snap lock tabs to secure lid to body
  • Weight (emitter box with lid): 0.88 lbs
